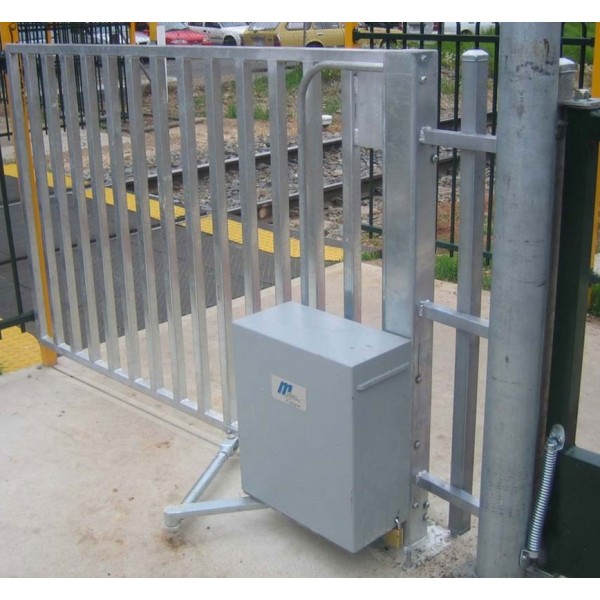

Magnetic AutoControl Pedestrian Railroad Gate - MRG

The Magnetic AutoControl MRG (Pedestrian Railroad Gate) series is made for the control of pedestrian traffic through level and foot crossings, particularly in railway settings where safety and high usage is important. The design of the automatic pedestrian gate is highly vandal resistant, and all components are of robust construction. The Magnetic torque drive has a protective indexing clutch and shock absorbing springs built in to prevent internal damage in case the gate is forced against its motion during its operation. The torque motor can be installed in any position without overheating or suffering any damage. Torque motors always product a certain degree of heat so there is no risk of freezing or condensation - even in cold climatic conditions

Gate, linkages, drive housings and posts are of robust construction to resist intentional damage by vandals. The gate hinges are designed for low maintenance with greased bushes and stainless steel pins. Couplings for the lever arms are self-aligning and of low maintenance. The drive system is mounted on a detachable mounting plate for fast exchange if required.

This Gate comes with optional powder coatings, and right or left handed openings. The basic powder coating consists of complete outer body powder coating in RAL7042 (Dark Grey), while the more advanced powder coating comes in hot dip galvanized steel, as well as the motor cover being powder coated in RAL7042.

Features:

• Voltage: 110 V
• Frequency: 50 – 60 Hz
• Max Power Consumption: 250 W
• Duty Cycle: 50%
• Opening Time: 6 Sec.
• Protection Class: IP55
• Gate Width: 55” (1400 mm)
• Gate Height: 47.25” (1200 mm)
• Gate Opening: 50” (1280 mm)
