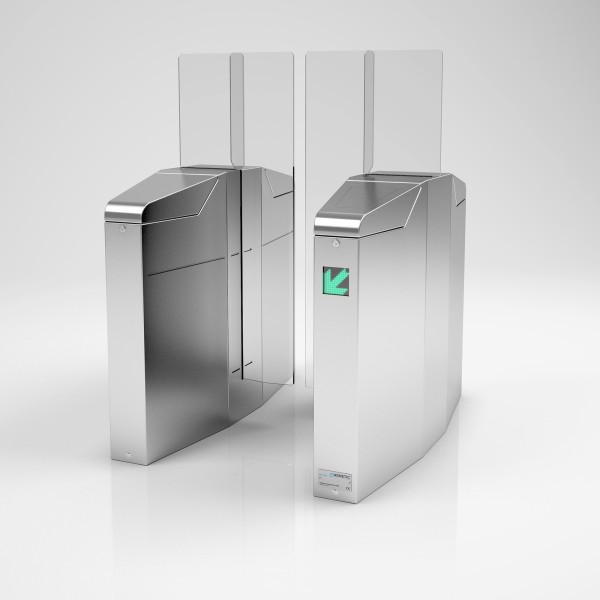

Magnetic AutoControl Pedestrian Highdoor - MPH112

Magnetic AutoControl's MPH112 Glass Highdoor Gates are the ideal solution for implementing rapid access processing of pedestrians when higher security is required. This is most ideal for monitored access control, directing foot traffic, and passage into secured areas.
Part Number: MPH112

Details

Magnetic AutoControl Pedestrian Highdoor - MPH112

Magnetic AutoControl’s MPH112 Glass Highdoor Gates are the ideal solution for implementing rapid access processing of pedestrians when higher security is required. This is most ideal for monitored access control, directing foot traffic, and passage into secured areas. It utilizes 8 different photocells for detection of any person or object blocking the passageway, as well as controlling tailgating. Includes an alarm signal for eliminating unauthorized travel into the gate path.

With a variety of ADA-wide passage widths, the MPH112 is suitable for wheelchairs, carts, and the transport of bulky materials. The variety of modules allows adaptation to nearly any space requirements as the glass panels neatly retract fully into the gate housing.

With three different safety glass panel heights, which include overclimb panels, the MPH112 is nearly impenetrable without presenting the proper credentials.

Features:

  • SS304 Stainless Steel Grade Housing
  • IP32 Protection Rating
  • Opening / Closing Time: Standard: 0.6 - 1.2 sec. / Wide: 1.0 - 1.4 sec.
  • Optional Access-Control System Integration
  • MHTM Drive Unit Offering Nearly Silent Operation
  • Three Different Heights To Choose From Depending On Security Needs
  • Standard (300mm) Or Wide (520mm) Lanes Offering ADA Compliancy
  • Ideal For Indoor Applications
  • 110 - 240V AC
Prefer to Call? (888) 378-1060

Questions about part number MPH112?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU MPH112
Level of Security High, Medium
ADA Compliant Yes
Wing Material Glass
MBC Lane Controllers Varies By Module
Front Plates Varies By Module
Gate End Displays Varies By Module
Protection Class IP 32
Max Power Consumption 300 W
Operating Temperature N/A
Frequency 50 - 60 Hz
Voltage 110 - 240V AC
Duty Cycle 100%
Drive Unit MHTM™
Manufacturer Magnetic Autocontrol
