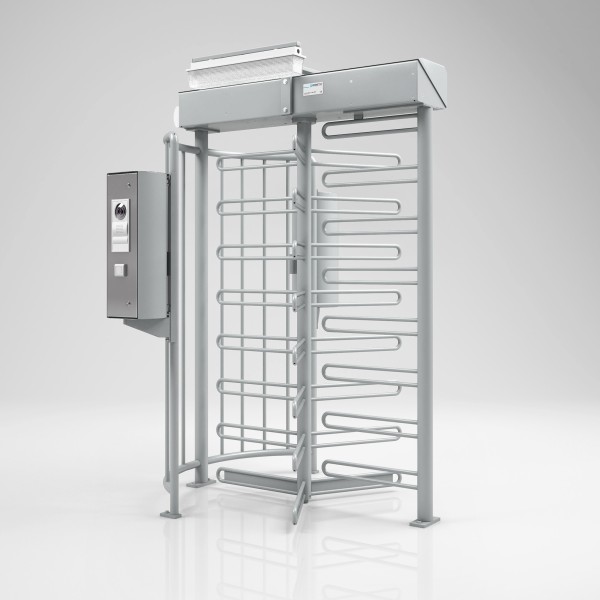

Magnetic AutoControl Full Height Single Lane Pedestrian Turnstile - MPT
Magnetic AutoControl MPT Pedestrian Turnstiles are the ideal solution for securely controlling access in restriced places where perimeter control is required and many people need to enter or leave in a short period. This turnstile can be used for bi-directional pedestrian access control applications. It has been designed as a modular system and can easily be assembled on site by hand and without the need of heavy lifting devices. Additional space has also been made available for the installation of access control equipment. The turnstile is designed to be installed directly to concrete surfaces. The MPT comes in three different variations, each one pertaining to different applications. All gates are hot-dipped galvanized steel with top cover powder coated in RAL 7042 (Dark Grey).
MPT Turnstile Models:
- The MPT 132 (motor-driven) is based on the MHTM™ technology that offers very smooth operation.
- The MPT 33 (electromechanical) is rotated manually by the user. The locking mechanism contains a cam plate and two locking solenoids.
- The MPT 30 (mechanical) is the easiest model for entering / exiting of recreational parks, public baths and similar venues.
Features:
- Voltage: 230 V AC
- Frequency: 50 Hz
- Duty Cycle: 100%
- Protection Class: IP43
- Operating Temperature: -13°F (-25°C) to 113°F (45°C)
- Dimensions (WxLxH): 1288 x 1500 x 2235 mm
| SKU | MPT-SINGLE |
|---|---|
| Unit Size | Single |
| Level of Security | High |
| Max Amperage | Varies By Model |
| Protection Class | IP 43 |
| Dimensions (WxLxH) | 1288 x 1500 x 2235 mm |
| Frequency | 50 Hz |
| Voltage | 230V AC |
| Operating Temperature | -13°F (-25°C) to 113°F (45°C) |
| Duty Cycle | 100% |
| Manufacturer | Magnetic Autocontrol |
