Magnetic Full-Height RAL 7042 Powder Coated Single-Lane Electro-Mechanical Turnstile - MPT33C-C300G
Details
Magnetic Full-Height RAL 7042 Powder Coated Single-Lane Electro-Mechanical Turnstile - MPT33C-C300G

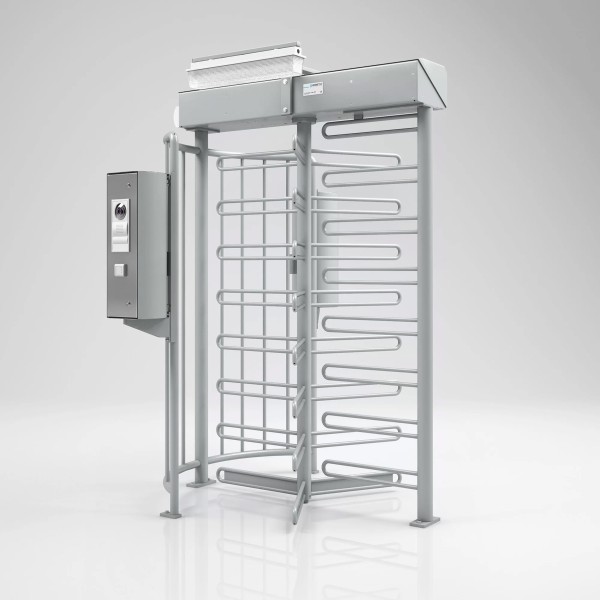

The Magnetic MPT33C-C300G is a single-lane, full-height electromechanical turnstile engineered for controlled pedestrian access in outdoor or high-traffic areas. This model features a rugged steel frame that is hot-dip galvanized and powder coated in RAL 7042 grey for enhanced durability and corrosion resistance. Designed for use in both directions, it integrates with standard access control systems and includes a cam plate and locking solenoids for secure interlocking during operation. Its modular design allows for on-site assembly without the need for heavy machinery, and it comes equipped with optional housing for access devices. Built for durability, it is rated for 10 million cycles and is suitable for installation directly onto concrete foundations.
Features
- Electromechanical drive with user-rotated movement and cam-based locking
- RAL 7042 powder-coated housing with hot-dip galvanized construction
- Supports bidirectional access control via integration with external systems
- Pre-configured for easy access control hardware installation
- Field-assembled modular design, no heavy lifting equipment required
Specifications
- Model: MPT 33C-C300G
- Drive Type: Electromechanical with locking solenoids
- Color: RAL 7042 Grey
- Number of Wings: 3 (120 Degrees)
- Enclosure Rating: IP43
- Voltage: 110–240 VAC, 50/60 Hz
- Power Consumption: 70 W (without accessories)
- Duty Cycle: 100%
- Dimensions (L x W x H): 1510 x 1288 x 2235 mm
- Weight: Approx. 250 kg
- Temperature Range: −25 Degrees C to +55 Degrees C
Optional Add-Ons
- Overhead lighting or protective roof
- Swing gate additions for wheelchair or bicycle access
- Foundation frame for non-concrete surfaces
- Custom RAL finishes and stainless steel upgrade options (304/316)
SKU | MPT33C-C300G |
---|---|
Finish | Complete Powder Coated |
Unit Operation | Electro-Mechanical |
Unit Size | Single |
On Power Failure | Free Spin or Secured |
Level of Security | High |
Protection Class | IP 43 |
Dimensions (WxLxH) | 1288 x 1500 x 2235 mm |
Frequency | 50 - 60 Hz |
Voltage | 110 - 240V AC |
Duty Cycle | 100% |
Manufacturer | Magnetic Autocontrol |
